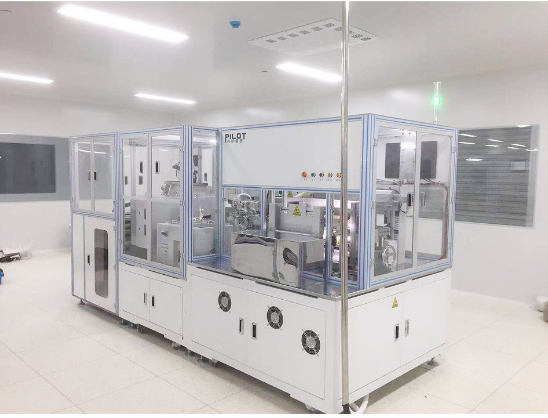

Function introduction of automatic roll shear bottling machine for blood glucose test paper
Blood glucose test strip storage - > automatic feeding - > CCD detection of offset and positioning of red head - > automatic correction - > feeding and rolling cutting - > material receiving and positioning - > sample retention - > elimination of red head defective products - > feeding and test strip transmission - > recheck CCD detection of red head, deviation, falling cover film, dislocation, etc. - > test strip count 25pcs (or 50pcs) - > bottle entry - > weighing - > automatic bottle feeding and bottle cap feeding (bottle cap good detection and removal) - > automatic capping (capping effect detection) - > automatic blanking of finished bottles - > code disk (tray cache and discharge)
Equipment parameters
Hobbing accuracy: ± 0.02mm,
Visual positioning accuracy: ± 0.05mm
Beat: 13-15 bottles / min (or 350-400 pieces / min). The efficiency is affected by the layout, width and glue coating amount of the test paper
Yield of roll cutting and bottle feeding: ≥ 99.9% (normal loss of retained sample and red head removed)
Planting rate: ≥ 90%
Labor: 1 person
Air pressure: 0.5-0.8mpa (with adjustable air valve), and the vacuum negative pressure value is greater than 65kpa
Gas consumption per unit time: About 0.5m 3/ second
Power supply: AC380V, 50 / 60Hz, 20A (Power: 6500w)
Overall dimension: about L*W*H =3650mm*1500mm*1900mm
Equipment weight: about 2800kg
